TC3EC 3 BAND
CONTEST STATION MOXON
![moxonson_6.jpg](moxonson_6.jpg)
YOU
TUBE MOXON MOVIE
Shown here is the new 3 band
TC3EC contest station moxon for 10,15 and 20 meters. The antenna
is designed by TA70M and uses the ugly balun seen in a few other
moxons on the Project website. The antenna was built by the
husband and wife contest team TC3EC, Can Okur,TA3GO and Elif Okur,
TA3YE
.
![142128 project TA7OM.jpg](142128 project TA7OM.jpg)

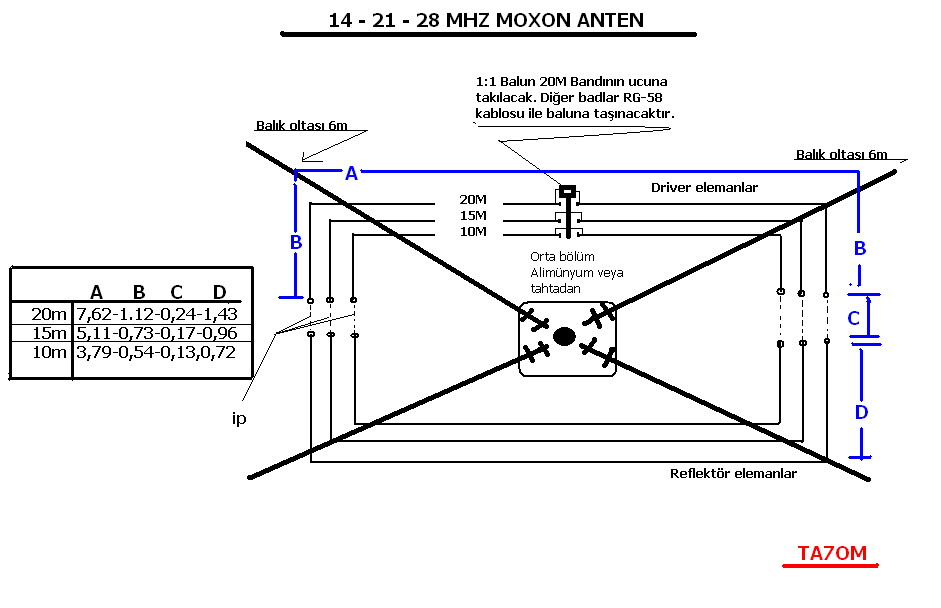

The
layout of the 3 band contest moxon by TA70M
![4.jpg](4.jpg)
The
Hub
![3.jpg](3.jpg)
![6.jpg](6.jpg)
Fiberglass
spreaders and Elements
![7.jpg](7.jpg)
![8.jpg](8.jpg)
Supports
for the ends of the spreaders
![moxon-1.jpg](moxon-1.jpg)
Beginning
of construction, attachment of spreaders to the hub
![moxon-2.jpg](moxon-2.jpg)
Starting
to take shape
![moxon-3.jpg](moxon-3.jpg)
Attachment
of the 10-15-20 meter elements
![2.jpg](2.jpg)
Upper
support pole for holding the ends of the spreaders up
![moxonson_1.JPG](moxonson_1.JPG)
Elif,
TA3YE inspecting the finished Moxon
![moxonson_2.JPG](moxonson_2.JPG)
![9.jpg](9.jpg)
attachment
of the rotor
![moxonson_3.JPG](moxonson_3.JPG)
Elif, TA3YE,
attaching the rotor to the mast
![moxonson_4.JPG](moxonson_4.JPG)
Can,
TC3GO, attaching the moxon to the mast (above and below)
![DSC00224.JPG](DSC00224.JPG)
![moxonson_5.jpg](moxonson_5.jpg)
CQ
Contest CQ Contest, TC3EC
